In a market that is undergoing the revolution of new powerful small-sized equipment, RELY-PCIe provides the most demanding networking features to any kind of PC, regardless of its size. PCI Express (PCIe) is the most extended high-speed serial computer expansion bus. It is the de-facto standard for expansion boards in PCs and is gaining acceptance in Industrial PCs and SCADA systems.

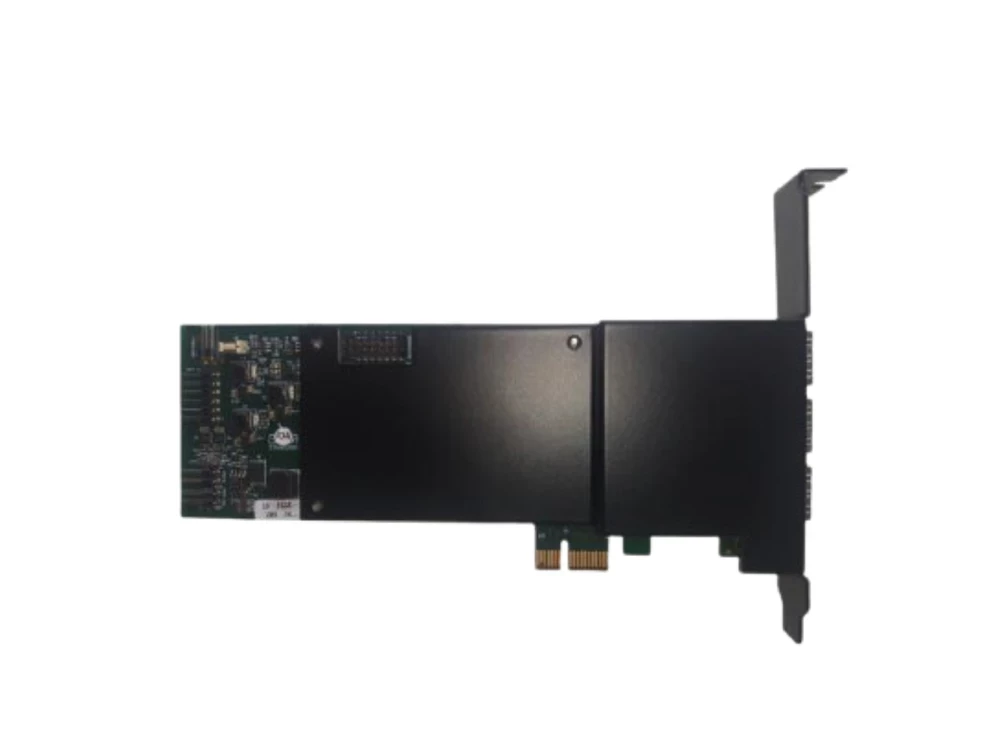

RELY-PCIe is a smart pluggable board that comprises the same device hardware and software resources to implement specialized networking, synchronization, and security-oriented services. Its flexible design allows it to be fitted in full-height or low-profile slots.
RELY-PCIe can be used as a multimedia PCIe Redbox-DAN, operating as an HSR/PRP node of a high-availability network and connecting an Ethernet network segment with an HSR/PRP network. Additionally, the device uses dedicated hardware for low latency switching and for implementing high-accuracy clock synchronization based on IEEE 1588 standard.
Specifications
| Communications | |
| Ethernet | 2x HSR/PRP/Ethernet ports 1x Ethernet port |
| Media options(SFP cages) | 10/100/1000Base-T / 1000Base-X / 100Base-FX |
| MMCX Interface | 1x PPS output |
| PCIe | 1x PCIe (Full height / low profile slot) |
| Seamless integration on old Legacy PCI Systems through optional adapter |
|
| Redundancy & Layer 2 capabilities | |
| Zero-Packet-Loss redundancy modes |
IEC 62439-3 v3 Clause 5 “High-availability Seamless Redundancy (HSR)” IEC 62439-3 v3 Clause 4 “Parallel Redundancy Protocol (PRP)” |
| Cut-through operation for the HSR ring to minimize the latency in the ring |
|
| Store&Forward for PRP and Ethernet operation | |
| Optional modes | IEC 62439-2 Clause 5 “Media Redundancy Protocol (MRP)” “Device Level Ring (DLR)” for Ethernet IP |
| IEEE802.1d (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP) | |
| Autonomous management of Supervision Frames | |
| VLAN support | |
| IEEE 802.1P Traffic prioritization | |
| Security features | |
| IIEEE 802.1X access control: port & MAC-based authentication | |
| Selective ports disabling capability | |
| Unsecure protocols disabling capability | |
| Selective port mirroring | |
| Digitally signed and encrypted firmware upgrades | |
| Synchronization | |
| IEEE 1588-2008 PTPv2 Ordinary Clock, Transparent Clock and Boundary Clock (optional) support. Preloaded configuration profiles (default end-to-end/peer-to-peer, power, IEC 61850-9-3…) |
|
| Network Time Protocol (NTP) support | |
| Time bridging between synchronization protocol | |
| Processing performance | |
| On-board FPGA for high-speed network switching and PTP timestamping |
|
| Multi-core CPU unit to support autonomous software application |
|
| Configuration and Management | |
| OS | Linux, Windows, VxWork |
| On-board Integrated Web Server |
Accessible through HTTP(S) Configuration profiles and firmware updates (provide HTML5-GUI configuration access) |
| Real-time HSR/PRP network nodes monitoring | |
| SNMPv1/v2c/v3 | SNMP over TLS support |
All product specifications are subject to change without prior notice
