CPS 50 is a fanless PC powered by NXP i.MX 8M Plus Cortex®-A53 Quad Core processor with neural network accelerator up to 2.3 TOPS designed for advanced machine learning inference at the industrial and IoT (Internet-of-Things) edge that require high-performance and low power consumption. CPS 50 comes with onboard 2GB LPDDR4 memory, 32GB eMMC, and internal Micro SD slot for storage expansion. CPS 50 packs all-you-need peripheral connectivity and offers flexibility with a modular rear I/O design for easy customization. The CPS 50 offers strong connectivity – Ethernet-based LAN ports and traditional serial ports, mainly for Modbus TCP or Modbus RTU communication. For wireless connectivity, CPS 50 has mini-PCIe and M.2 sockets that can support optional wireless modules for IoT applications, for example, Wi-Fi, Bluetooth, 4G LTE, and 5G modules as well as a storage module. CPS 50 supports a wide DC input range from 9-30VDC. All of the features make CPS 50 suitable for various applications such as edge AI, M2M intelligent systems, and factory automation platforms.
| CPU Support | NXP i.MX 8M Plus Cortex®-A53 Quad Core 1.6 GHz | |||||||||||||||||||||||||
| Main Memory | Onboard LPDDR4 2 GB, 4000MT/s memory | |||||||||||||||||||||||||
| Display Option | 1 x HDMI®, resolution 3840 x 2160@30Hz, 1920 x 1080@60 GHz | |||||||||||||||||||||||||
| LED System Indicators | Top: 3 x Green wireless network status LED
Front: 1 x Green power LED, 1 x Green S/W programmable LED |
|||||||||||||||||||||||||

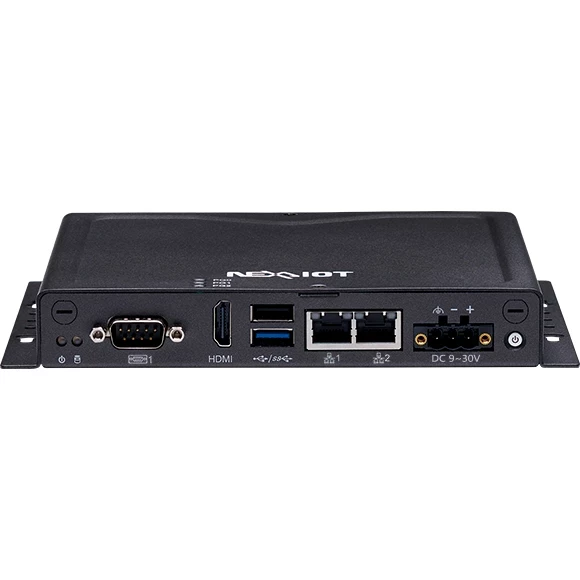

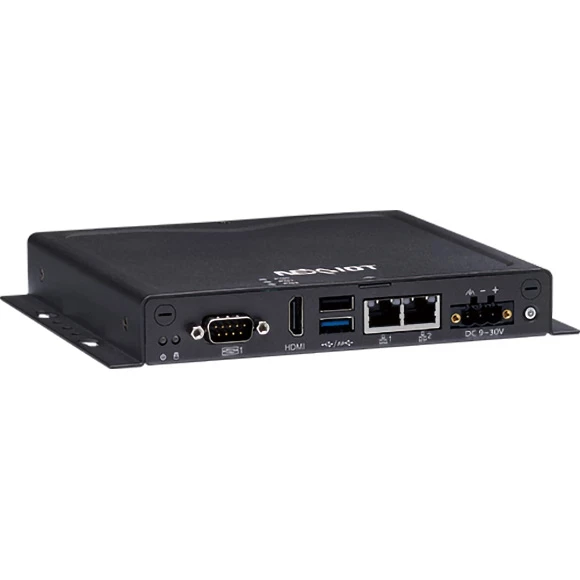

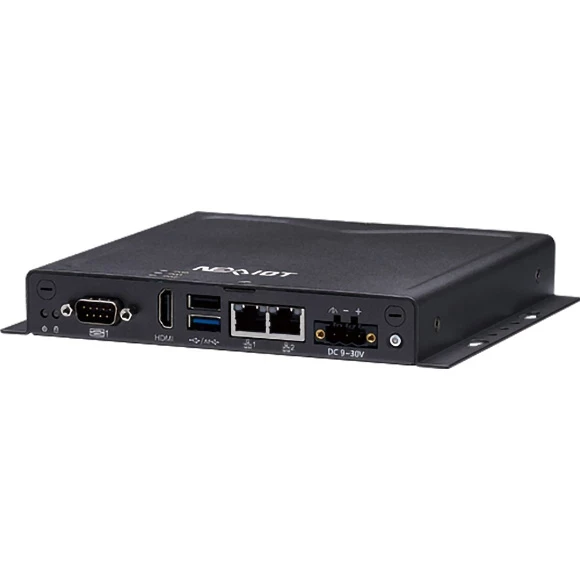

| I/O Interface-Front | ATX power on/off switch
1 x HDMI® 2 x RJ45 for GbE LAN 1 x USB 3.0 Type A port (900 mA), 1 x USB 2.0 Type A port (500 mA) 1 x DB9 for RS-232/422/485, select by SW (TX, RX, CTX, RTX 4 wire only) 1 x 3-pin terminal block, supports 9-30VDC input 2 x Antenna hole for optional Wi-Fi/4G/LTE antenna |
|||||||||||||||||||||||||

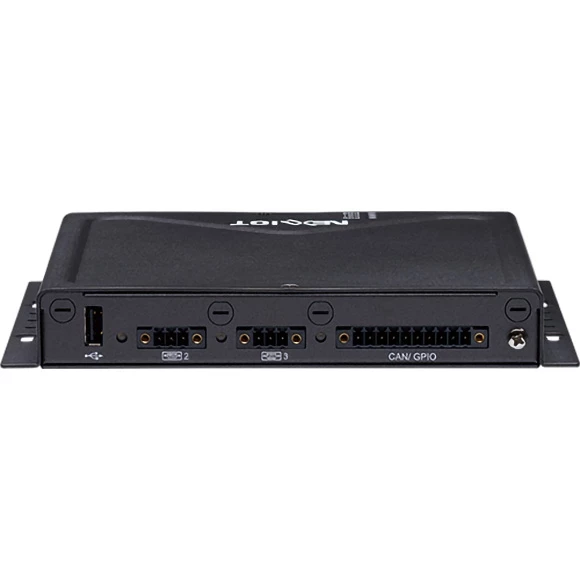

| I/O Interface-Rear | 2 x DB9 for RS 232/485 (TX, RX 2 wire only)
1 x CAN Bus 2.0B 4 x GPI and 4 x GPO (programmable to GPI or GPO 1 x USB 2.0 Type A4 x Antenna hole for optional Wi Fi/4G/LTE antenna |
|||||||||||||||||||||||||
| I/O Interface-Internal | 1 x MIPI CSI connector
1 x 4 Lane MIPI DSI connector (Either one with LVDS connector, BOM option) 1 x LVDS connector 24Bit LVDS, backlight power: 5V/12V, Max. 1A 1 x Touch connector 1 x Debug connector for console use 1 x Speaker out & 1 x Mic in Pin Header (Optional) |
|||||||||||||||||||||||||
| Storage Device | Onboard 32 GB eMMC
1 x Internal Micro SD slot |
|||||||||||||||||||||||||
| Power Requirements | Power input: 9-30VDC input | |||||||||||||||||||||||||
| Expansion Slot | 1 x Full size Mini PCIe for optional Wi Fi/BT/4G LTE (PCIe 3.0, USB2.0, SIM), support SIM card holder onboard
1 x M.2 (Key E) 2230 (SDIO, UART)1 x M.2 (Key B) 3042/3052 (USB3.0), support SIM card holder onboard
|
|||||||||||||||||||||||||
| Support OS | Primary: Linux 5.4.70_2.3.3 Yocto Project 3.0 (Zeus)
Secondary: Ubuntu 20.04 LTS |
|||||||||||||||||||||||||
| Dimensions | 162mm (W) x 150mm (D) x 26mm (H) w/o wall mount bracket
186mm (W) x 150mm (D) x 26mm (H) w/ wall mount bracket |
|||||||||||||||||||||||||
| Construction | Metal chassis with fanless design | |||||||||||||||||||||||||
| Environment | Operating temperature – Ambient temperature: -20°C~70 °C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)Storage temperature: -20°C to 85°C Relative humidity: 10% to 90% (non-condensing) Shock protection Vibration protection with EMMC/ M.2 condition: |
|||||||||||||||||||||||||
| Certifications | CE EN61000-6-2/ EN61000-6-4
FCC ClassA ROHS 2.0 (2015/863) |
