Built-in Hi-fi Amplified Speakers Touch Screen Kiosk With Stylish And ADA Compliant Design
Part No: TSK9005-2D

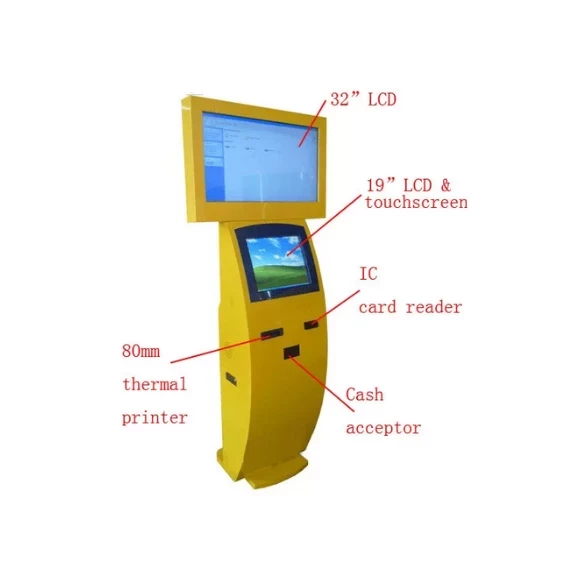

Two display kiosk
Key Features
● Two displays: upper display for video play or advertising; lower display paired with SAW touchscreen
for interaction
● Super quality SAW touchscreen with anti-glare and vandal-resistant feature
● 15″,17″,19″TFT LCD displays for option ( for lower display and upper display)
● Built-in hi-fi amplified speakers
● Customizable for additional peripherals/components
● Applications: office building, court house, hospital/medical center, airport, university, government
building, retail store, theater and other public places where information and/or transaction are
provided in self-service and interactive manner.
| Technical Specifications | |
| TFT LCD Display | -Resolution: 1024×768(15″) 1280×1024(17″and 19″) – Brightness: 250~300 nits – Contrast ratio: 450:1 – Response time : 8ms |
| Touch Screen | -Vandal-proof SAW touch screen – Material: Heat tempered glass with thickness 6mm – Resolution: 4096*4096 – Deviation of error: <2mm – Light Transmittance: 92% – Surface Hardness: 7 Mohs scale – Lifetime:50, 000, 000 times at one single location – Response time: less than 16ms – Touch activation force: 10~100g |
| Enclosure | -Durable steel enclosure (different colors for option) – Built-in power control panel, and hi-fi speakers. – Two cooling fans for computer board and main body separately – RJ45/RJ11 interface – Large access doors with tubular locks/keys |
| Computer | -Mother board: Asrock G41 – CPU: Intel Pentium dual core E3400,2.6GB (upgradeable on request) – RAM: 2GB (upgradeable on request) – Hard Disc: 320GB (upgradeable on request) |
| Compatible Operation System | Win3.X/98/2000/NT4.0/XP/Win7/Linux |
| Working Voltage | AC 220V, 50 Hz or 110V, 60 Hz for option |
| Ambient Environment | -Working Temperature -20°C~65°C; Relative Humidity: 30%~90% – Storage Temperature: -40°C~80°C;Relative Humidity: 5%~95% |
| Dimensions | 187 (Height) x 50 (Width) x 48 (Depth) cm |
| Optional Peripherals | Camera, metal keyboard, card reader, thermal printer and cash acceptor etc |
