Product Description

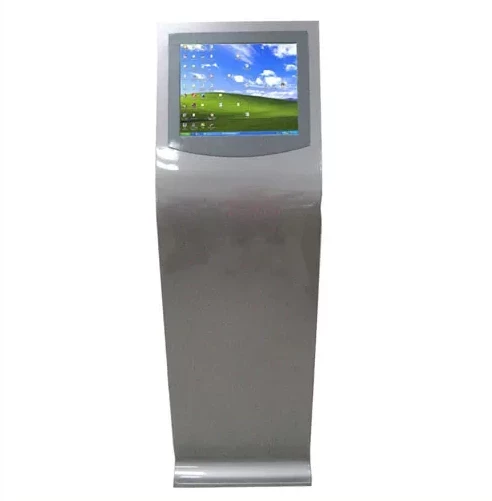

Standalone Interactive Touch Screen Kiosks With Curved Design Indoor Service
PN:TSK8013 (Freestanding Model)
Key Features:
1) High-sensitivity, high light-transmittance, anti-glare, vandal-proof SAW touchscreen
2) 15″,17″,19″TFT LCD displays for option
3) Durable steel enclosure, sleek, curved, extra slim, stylish and ADA compliant design
4) Built-in hi-fi amplified speakers
5) Customizable
6) Applications: office building, court house, hospital/medical center, airport, university,
government building, shop, theater and other public places where information and/or
transaction are provided in self-service and interactive manner.
| Technical Specification | |
| TFT LCD Display | |
| Resolution | 1024×768(15″);1280×1024(17″and 19″) |
| Brightness | 250~300 nits |
| Contrast ratio | 450:1 |
| Response time | 8 ms |
| Touch Screen | |
| Type | Vandal-proof SAW touch screen |
| Resolution | 4096*4096 |
| Deviation of error | <2mm |
| Light Transmittance | ≥ 92% |
| Surface Hardness | 7 Mohs scale |
| Lifetime | 50,000,000 times at one single location |
| Response time | less than 16 ms |
| Touch activation force | 10~100g |
| Enclosure | |
| Durable steel enclosure (different colors for option) | |
| Built-in power control panel, and hi-fi speakers. | |
| Two cooling fans for computer board and main body separately | |
| RJ45/RJ11 interface | |
| Large access doors with tubular locks/keys | |
| Computer | |
| Mother board | GIGABYTE H61 |
| CPU | Intel Pentium dual core G550 2.60GHz (upgradeable as per request) |
| RAM | 2GB (upgradeable as per request) |
| Hard Disc | 500GB (upgradeable on request) |
| Interface and Port | 8×USB2.0; 1×VGA; 2xPS/2; 1 x COMM;1x RJ45;LAN port |
| Others | Integrated sound/network/graphics card |
| Compatible Operation System | |
| Windows2000/XP/Vista/Win7, RedHatLinux/FedoraCore/Win8 | |
| Power supply | |
| AC110V-240V,50H-60HZ | |
| Working Environment | |
| Temperature -20℃-+65℃, Relative humidity 10%-90% | |
| Dimension | |
| 145x 48x 32CMs (H x W x D) | |
| Packaging | |
| Exportable,transport-worthy plywood crate | |
| Warranty | |
| One year after the date of delivery | |
| Optional Periperals | |
| Metal keyboard, keypad, webcam, barcode scanner, card reader, thermal printer, coin acceptor, bill acceptor, finger printer reader etc. | |
