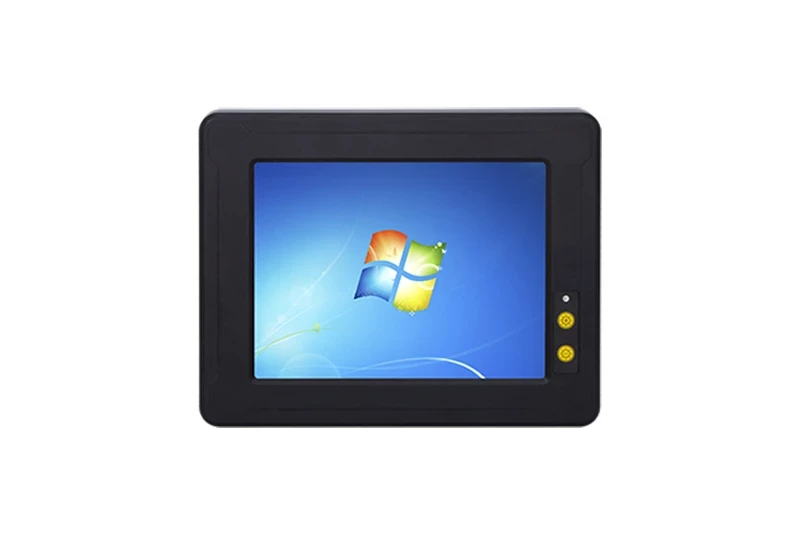

The QY-P6000-Vehicle series is a ruggedized vehicle-mounted computer equipped with Intel’s “Core” mobile high-performance processor and supports Windows or Linux operating systems. It can fully utilize its data processing capabilities in a mobile environment and optimize application and network management capabilities. At the same time, it maintains the flexibility of multi-tasking applications. It is anti-vibration, anti-shock and IP66 dust-proof and waterproof. It uses an industrial grade LCD multi-point capacitive touch screen and supports 802.11a/b/g/n/ac, Bluetooth V4.0, Full network 4G/5GLTE, private network 1.4G/1.8G. LTE, GP5/GNSS/Beidou, CAN2.0B and other communication modules support 9-36V dense voltage DC input, and the front panel has buttons, making it suitable for various fleet management scenarios such as warehouse forklifts, logistics fleets, terminal trucks, etc. application.
Mother Board Specification:
| Model | QY-P6084-Vehicle |
| CPU | J1900 i5: 4th、6th、7th、8th、10th i7: 7th、10th |
| Display | 1*HDMI: resolution up to 1920*1080 (Max to 1*M12 type port) |
| Memory | Low than 6th CPU: 1*DDR III-1600MHz,up to 8GB More than 6th CPU: 1*DDR IIII-3200MHz,up to 16GB |
| Storage | 1*MSATA |
| Expansion | 1*Mini PCIE slot for WIFI+1*M.2 slot for 4G |
| Ethernet | 2*RTL8211F LAN chip (Max to 2*M12 type port) |
| USB | 2*USB 3.0+2*USB 2.0 (Max to 2*M12 type port) |
| COM | 4*RS-232+2*RS-485 / 422 /232 (Max to 3*M12 type port) |
2.Screen Specification
| LED Screen Size | 8.4 inch TFT LED，4:3 screen | |
| Resolution | 800*600 | |
| Brightness | 350 nits | |
| Contrast | 800:1 | |
| Largest Colorful | 16M | |
| Touch Screen Type | Capacitive | Resistive |
| Light Transmittance | More than 95% | More than 95% |
| Touch Life | 50 million times | 35 million times |
| Response Time | ＜5ms | ＜5ms |
| High temperature Test | 85℃ / 1000 hrs | |
| Constant Temperature And humidity test |
85℃ / 90%RH / 1000hrs | |
3.Machine Specification
| Power Input | DC 9-36V (Max to 1*M12 type port) |
| Working Temperature | -30℃ to 70℃ |
| Storage Temperature | -30℃ to 70℃ |
| Humidity | 90% (20±50℃） |
| Size | 240mm*190mm*68mm |
| Installation | Wall mount (VESA) |
| Button | Brightness adjustment / switch button |
| Front Panel Protection | Whole machine IP66 water proof |
| Cooling | Alum alloy chassis,conduction heat dissipation |
4.Ordering Information
| Model Name |
CPU | Touch Screen Type | Ethernet | USB | COM | Display Port |
RAM | Storage | Expansion | Power Input |
| P6084 | J1900、4th | Capacitve Resistive |
2 | 4 | 6 | VGA | Up to 8GB 1*DDR 3 |
1*MSATA | 1*Mini PCIE 1*M.2 |
DC 9-36V |
| 6、7、8、10th | Up to 16GB 1*DDR 4 |
