Neu-X102 series are powered by Intel® processor i3-N305 featuring upgraded computing performance with low power-efficient and integrated a rich set of IOT features. It supports 2x HDMI 1.4b display outputs, dual 2.5GbE LAN ports, 4x USB 3.2 Gen2 ports, 1x RS232/RS422/RS485 port and a M.22242 Key M storage slot that supports PCIe and SATA format. In addition, the mPCIe slot support LTE and Wi-Fi6/6E module. With the LTE and Wi-Fi communication, provide the wide-area coverage and real-time transmission for gateway applications.
With its slim, compact-size, fanless design and extended durability can furtherly cover a lot of usages like IOT gateway, self-service kiosks, endless aisles, QSRs, drive-thru kiosks, bus stops, digital transit information signs, intelligent Pole/lighting system, information display system, such as PIDS for smart city.
| CPU Support | Intel® Core™ processor, i3-N305, 15W, up to 3.8GHz |
| Graphic & Display | Intel® UHD graphics |
| Main Memory | 1 x 260-pin DDR4 SO-DIMM socket, up to 3200MHz with non-ECC, un-buffered memory up to 16GB |

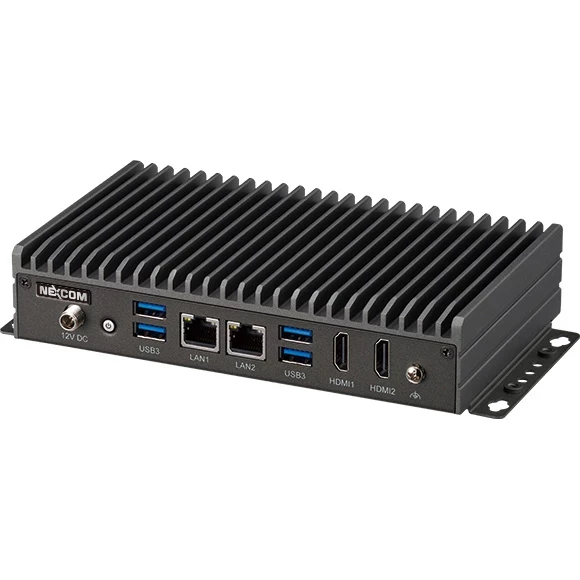

| I/O Interface-Front | 2 x RJ45 with LEDs for 2.5GbE LAN2
x HDMI 1.4b, resolution 3840 x 2160@30Hz 4 x USB 3.2 1 x Power button with LED 1 x DC-in Jack with lock |

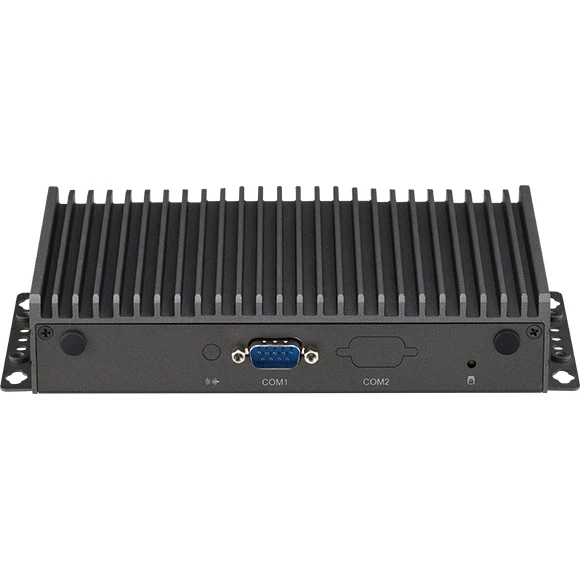

| I/O Interface-Rear | 2 x Antenna hole
1 x COM port (RS232/RS422/RS485) 1 x Storage active LED |
| Internal I/O | 1 x COM port connector (RS232, RI/5V/12V)
1 x Line-out audio connector 2 x 6-pin header for 3 x USB 2.0 ports 1 x 10-pin header for GPIO, 4 x GPI, 4 x GPO |
| Expansion | 1 x mini-PCIe full-size connector with SIM slot (nano) onboard, supports Wi-Fi 6/6E & LTE module |
| Storage | 1 x M.2 2242 Key M storage for supporting SATA & PCIe signal |
| Power Supply | 1 x External 12V/5A, 60W power adapter (Included in accessory)Input: DC+12V DC |
| Environment | Operating temperature: -5°C to 50°C ambient with 0.7m/s air flow
Humidity: 95% (non-condensing) Storage temperature: -20°C to 80°C Shock protection: 50G peak acceleration, 11ms according to IEC60068-2-27 Vibration protection |
| Mechanical & Dimension | Aluminum and metal chassis with fanless design203.5mm (W) x 106mm(D) x 40mm (H) |
| Certification | CE (EN55035 + EN55032)
FCC Class A (EMI part 15B) LVD (EN62368-1) |
| Operating System | Win10 64-bit, Win 11
Linux 4.1 above |
| Package Information | 2pcs/carton
G.W: 3.2kgs Dimension: 296x276x205mm |
