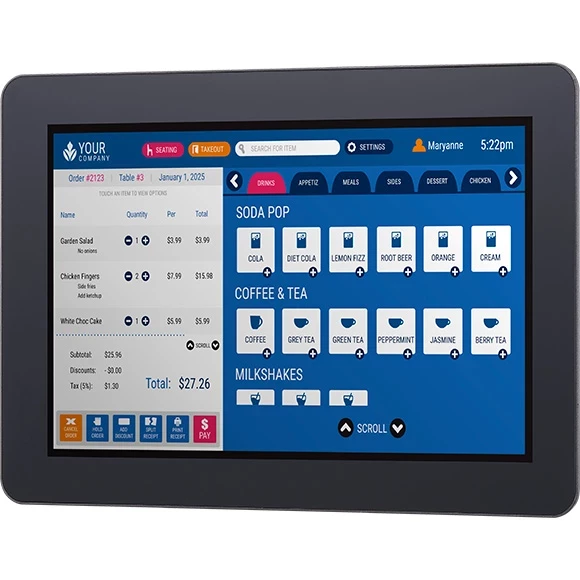

The 10.1” embedded fanless panel PC XPPC10-10N97, embedded with an industrial motherboard, is intended for vertical industrial applications. XPPC10-10N97 features an industrial-grade panel with 1280 x 800 (WXGA) resolution and 400 nits brightness. The front panel adopts a slim bezel design and complies with the IP65 rating. Its flexible mounting options make it the perfect fit for industrial applications.
XPPC10-10N97 is powered by an Intel® Processor N97. With built-in Intel® UHD Graphics, it is available for AI inference, enhancing visual quality and graphics performance. With rich I/O of USB 2.0, USB 3.2, GL AN, and COM, it fulfills the demands of various edge computing applications. XPPC10-10N97 is ideal for diverse applications, such as self-service kiosks, smart retail, and payment machines.
| Panel | LCD size: 10.1”, 16:10
Resolution: 1280 x 800 (WXGA) Luminance: Contrast ratio: 1000 LCD color: 16.7M Viewing angle: 89 (U), 89 (D), 89 (L), 89(R) |
| Touch Screen | 10 points P-Cap (Projected Capacitive Touch)
Optical Bonding Glass Surface Treatment: AS (Anti-Smudge Coating for easy cleaning) |
| System | Intel® Processor N97
Intel® UHD GraphicsTPM 2.0 |
| Main Memory | 1 x DDR4 SO-DIMM, non-ECC, up to 16GB |
| Storage Device | 1 x M.2 Key M 2242 NVMe SSD (PCIe 3.0 x1, SATA 3.0)
1 x Mini PCIe slot, supports mSATA |
| Expansion | 1 x Mini PCIe slot – Support Wi-Fi/BT module |
| I/O Interface – Rear | 1 x DC 12V input
2 x 1GbE RJ45 port, Intel® I210AT 1 x HDMI 2.0b, up to 3840×2160@60Hz 2 x USB 3.2 Gen 1×1, Type-A 2 x USB 2.0, Type-A 1 x Speaker out (can’t hot plug) 1 x Power button |

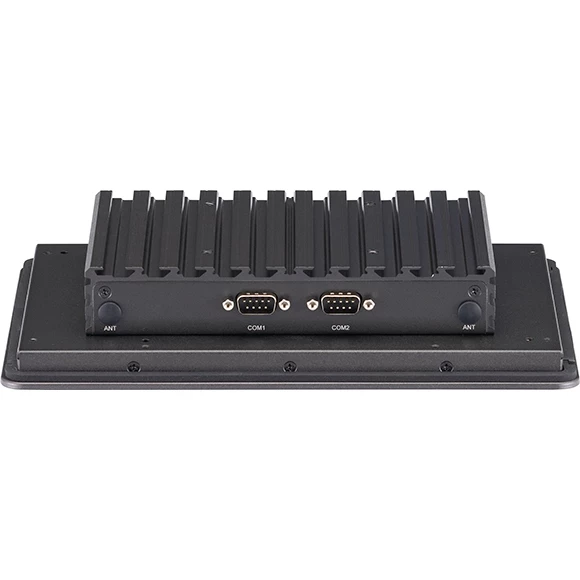

| I/O Interface – Front | 2 x Antenna hole
1 x COM port, supports RS-232/422/485 |
| I/O Interface – Internal | 1 x 4-pin header for Line out
1 x 10-pin header for 4-in & 4-out GPIO 1 x 9-pin header for COM2 RS-232 1 x 3-pin jumper for LCD panel voltage 3.3V/5V setting 1 x DC Power thru one 2-pin pitch=3 . 96 mm ATX connector (lockable) |

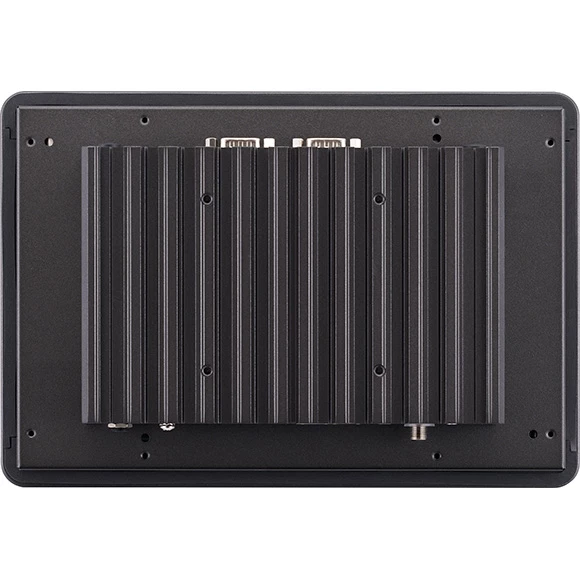

| Mechanical & Environment | System Unit – Dimension: 260.3mm (W) x 178.3mm (D) x 47.9mm (H) – Net weight: 1.62kg/ UnitSupport – VESA Mount 75mm x 75mm – Panel Mount (optional kit) – Open Frame (optional kit)Package Carton – Dimension: 343mm x 308mm x 158mm – Gross weight: 2.7kg/ (1 unit / per carton) |
| Environment | Operating temperature: – Ambient with air flow: 0°C ~ 50°C – Storage temperature: -20°C ~ 60°CRelative humidity: 0%~90% (non-condensing)Shock protection: 20g peak acceleration, 11 ms according to IEC 60068-2-27Vibration protection – Random: 2.2Grms@5~500Hz, 0.5hr/axis (non-operating), IEC 60068-2-64 – Sinusoidal: 2Grms@5~500Hz, 1hr/axis, IEC 60068 -2-6 |
| Power Supply | Input: DC 12V input – 1 x 12V, 60W AC/DC lockable adapter included in accessory |
| Certifications | CE (EMC EN 55035 + EN 55032)
FCC Class A (EMI Part 15B)LVD (EN 62368-1) |
| OS Support Lists | Windows 11
Windows 10, 64bit Linux |
