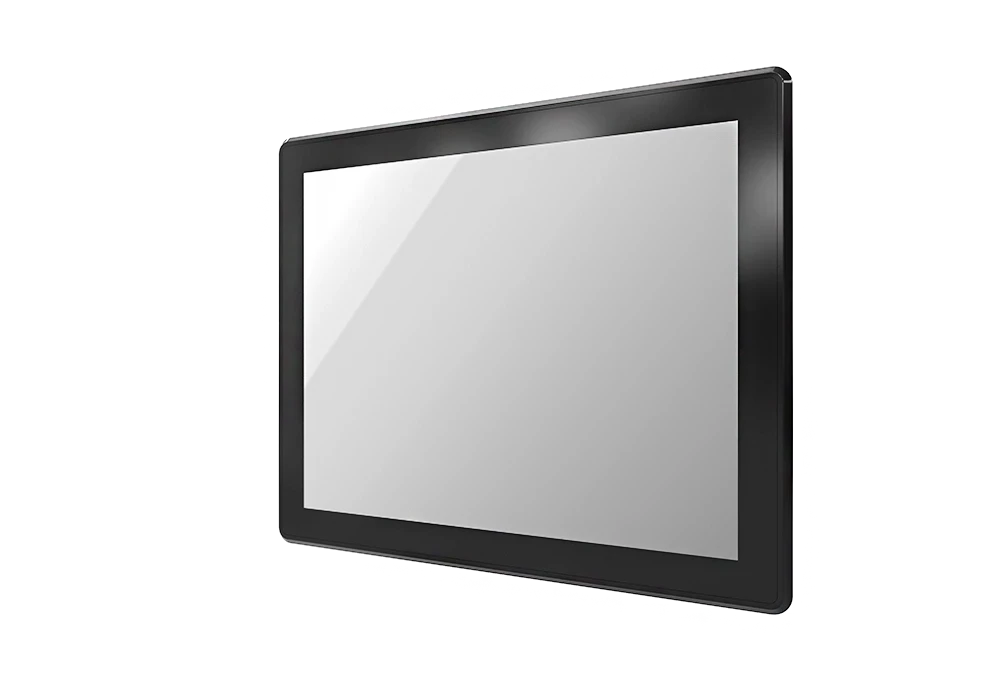

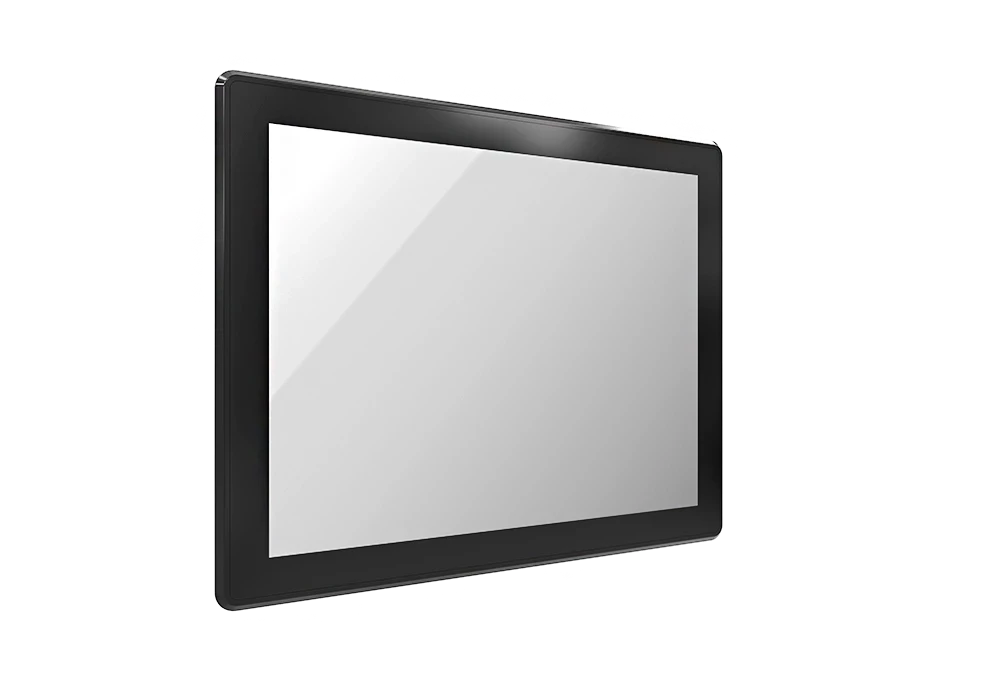

The VIO-200/MX200 series touch monitor provides a wide selection of display sizes, ranging from 12.1” to 23.8”, with aspect ratios of 4:3 and 16:9, and various touch types. Featuring with flat surface, IP 65 dust/waterproof front panel, and aluminum die-casting front frame with rugged body structure, it is rugged and reliable for industrial environment. It also supports Multi-Mode Display Module (MDM) technology which allows to configuration, upgrade and maintenance.
VIO-200/MX200 series supports both digital and analog signal input via three types of display interface: VGA, HDMI and DisplayPort. The touchscreen can be connected via USB or COM port. It also has a multi-language OSD function for adjusting the view options of the display. In addition, supporting wide range power input from 9 to 48VDC and high reliability even operating in temperature extremes.Featuring a completely cable-less design and high functionality, VIO-200/MX200 series are ruggedized display systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection and reverse protection DC power input makes VIO-200/MX200 series are safety system for all industrial application.
Thông số kỹ thuật
| Display | |
|---|---|
| LCD Size | 15” (4:3) |
| Max. Resolution | 1024 x 768 (XGA) |
| Brightness (cd/m2) | 350 / 1000 (Optional) |
| Contrast Ratio | 1000:1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.297 (H) x 0.297 (V) |
| Viewing Angle (H-V) | 170 / 160 |
| Backlight MTBF | 50000 hrs (LED Backlight) |
| Touch | |
|---|---|
| Resistive 5-wire | VIO-215R/MX200 |
| Projected Capacitive | VIO-215C/MX200 |

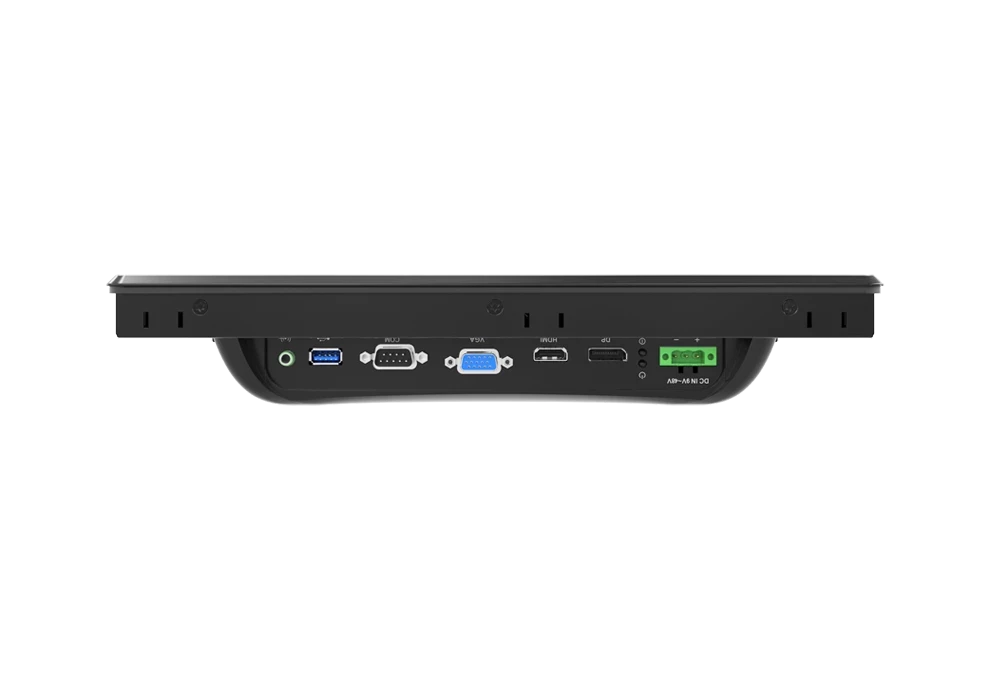

| I/O | |
|---|---|
| VGA | 1x VGA Input |
| HDMI | 1x HDMI Input |
| DisplayPort | 1x DisplayPort Input |
| USB 2.0 | 1x USB 2.0 Input |
| COM Port | 1x COM Port Input (Resistive Touch Only) |
| Audio | 1x Audio Input |
| Other Features | |
|---|---|
| Internal Speaker | AMP 10W + 10W |
| OSD | LCD On/Off, Auto, Menu, Up and Down, Multi-language |
| Power | |
|---|---|
| Power Supply Voltage | 9~48VDC |
| Power Connector | 3-pin Terminal Block |
| Power Adaptor | Optional AC/DC 12V/5A, 60W |
| Power Protection | OVP (Over Voltage Protection), OCP (Over Current Protection), Reverse Protection |
| Environment | |
|---|---|
| Operating Temp. | -10°C to 60°C |
| Storage Temp. | -20°C to 70°C |
| Relative Humidity | 10%~80% (non-condensing) |
| IP Level | IP 65 Compliant Front Panel |
| Vibration | 1.5 Grms, 5 – 500 Hz, 0.5 hr/axis |
| Shock | 20G, half sine, 11ms |
| Standards / Certification | UL Safety: UL62368-1, 3rd Ed., (cULus) CE, FCC Class A |
| Physical | |
|---|---|
| Front Panel Construction | Die-cast Flat Surface |
| Dimension | 377 (W) x 301 (D) x 64.7 (H) mm |
| Weight | 5.33 kg ~ 5.43 kg |
| Mounting | VESA Mounting Holes 75 x 75mm, 100 x 100mm |
- All product specifications and information are subject to change without notice.
