Lantech I(P)GS-3008 is a high performance L2+ all Gigabit switch with 8 10/100/1000T (w/8 PoE 802.3af/at) which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms for single ring, comprehensive QoS, VLAN, GVRP, advanced security SSH v2/SSL, INGRESS ACL L2/L3, IGMPv1/v2/v3/router port, DHCP server/relay, jumbo frame which are important features required in mid and large network. It also supports Cisco Discovery Protocol (CDP) and LLDP for Ciscoworks to detect the switch info and to be shown on L2 map topology.
ORDERING INFORMATION
| P/N | Model name | Description |
|---|---|---|
8350-988 |
IPGS-3008-12V | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W L2+ Industrial Managed Ethernet Switch; dual 9.5V~56VDC input; -20°C to 60°C |
| 8350-989 |
IPGS-3008-12V-E | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W L2+ Industrial Managed Ethernet Switch; dual 9.5V~56VDC input; -40°C to 75°C |
| 8350-9884 |
IPGS-3008-M-12V | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W L2+ Industrial Managed Ethernet Switch; dual 9.5V~56VDC input; -20°C to 60°C; Environmental monitoring |
| 8350-9892 |
IPGS-3008-M-12V-E | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W L2+ Industrial Managed Ethernet Switch; dual 9.5V~56VDC input; -40°C to 75°C; Environmental monitoring |
| 8350-9862 |
IPGS-3008-24V | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W L2+ Industrial Managed Ethernet Switch; dual 9V~36VDC input, compliant with ISO7637-2; -20°C to 60°C |
| 8350-9863 |
IPGS-3008-24V-E | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W L2+ Industrial Managed Ethernet Switch; dual 9V~36VDC input, compliant with ISO7637-2; -40°C to 75°C |
| 8350-9864 |
IPGS-3008-M-24V | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W L2+ Industrial Managed Ethernet Switch; dual 9V~36VDC input, compliant with ISO7637-2; -20°C to 60°C; Environmental monitoring |
| 8350-9865 |
IPGS-3008-M-24V-E | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W L2+ Industrial Managed Ethernet Switch; dual 9V~36VDC input, compliant with ISO7637-2; -40°C to 75°C; Environmental monitoring |
| 8350-986 | IPGS-3008-48V | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W L2+ Industrial Managed Ethernet Switch; dual 44~56VDC input; -20°C to 60°C |
| 8350-987 | IPGS-3008-48V-E | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W L2+ Industrial Managed Ethernet Switch; dual 44~56VDC input; -40°C to 75°C |
| 8350-9861 | IPGS-3008-M-48V | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W L2+ Industrial Managed Ethernet Switch; dual 44~56VDC input; -20°C to 60°C; Environmental monitoring |
| 8350-9871 | IPGS-3008-M-48V-E | 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W L2+ Industrial Managed Ethernet Switch; dual 44~56VDC input; -40°C to 75°C; Environmental monitoring |
| 8350-9876 |

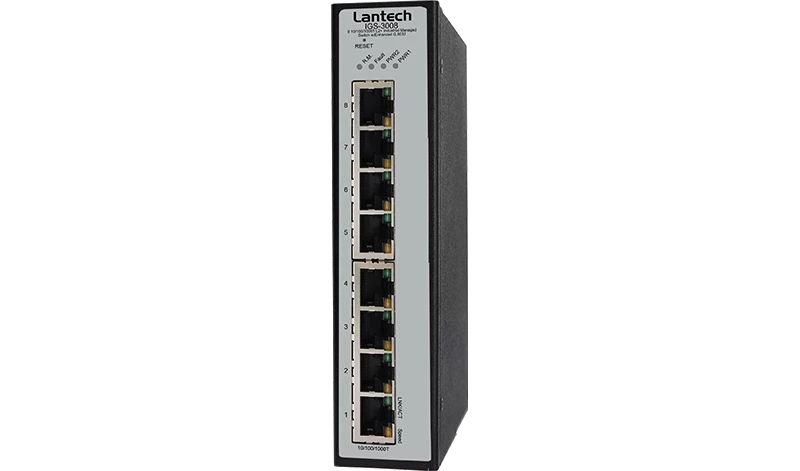

IGS-3008-12V | 8 10/100/1000T L2+ Industrial Managed Ethernet Switch, dual 9V~60VDC input; -20°C to 60°C |
| 8350-9885 |
IGS-3008-24V | 8 10/100/1000T L2+ Industrial Managed Ethernet Switch, dual 9V~36VDC input, compliant with ISO7637-2; -20°C to 60°C |
| 8350-9878 |
IGS-3008-12V-E | 8 10/100/1000T L2+ Industrial Managed Ethernet Switch, dual 9V~60VDC input; -40°C to 75°C |
| 8350-9879 |
IGS-3008-24V-E | 8 10/100/1000T L2+ Industrial Managed Ethernet Switch, dual 9V~36VDC input, compliant with ISO7637-2; -40°C to 75°C |
| 8350-9887 |
IGS-3008-12V-M | 8 10/100/1000T L2+ Industrial Managed Ethernet Switch + environmental monitoring, dual 9V~60VDC input; -20°C to 60°C |
| 8350-9888 |
IGS-3008-24V-M | 8 10/100/1000T L2+ Industrial Managed Ethernet Switch + environmental monitoring, dual 9V~36VDC input, compliant with ISO7637-2; -20°C to 60°C |
| 8350-9877 |
IGS-3008-12V-M-E | 8 10/100/1000T L2+ Industrial Managed Ethernet Switch + environmental monitoring, dual 9V~60VDC input; -40°C to 75°C |
| 8350-9889 |
IGS-3008-24V-M-E | 8 10/100/1000T L2+ Industrial Managed Ethernet Switch + environmental monitoring, dual 9V~36VDC input, compliant with ISO7637-2; -40°C to 75°C |
