BCO-500-RK3568J

Supports Rockchip RK3568J ARM Quad Cortex-A55, up to 2.0 GHz
LPDDR4 2133MHz 4 GB
64GB of eMMC for OS
1x M.2 B-Key, 1x M.2 E-Key
2x RS-232/422/485, 2x USB 3.0 Type A, 2x LAN
4K Independent Display by 1x HDMI
Wide Operating Temperature: -40°C to 70°C
Power Input: 12 to 24VDC
Android 13 / Debian 11 / Ubuntu 22.04
UL 61010-1, UL 61010-2-201, CE, FCC Class A, UKCA, IC

Semi-Rugged Fanless Mini Computer with Rockchip ARM Cortex-A55 RK3568J, 1x HDMI, 2x USB, 1x CAN, 2x COM, 2x LAN

Datasheet 0969.631.246

The BCO-500-RK3568 Series is an ARM-based, fanless mini industrial computer purpose-built for edge computing in space-constrained and semi-rugged environments. Powered by the Rockchip RK3568J processor, this compact system balances power efficiency with versatile I/O, wireless expansion, and flexible OS support.

Fanless Design
Rich I/O
Wide Temperature

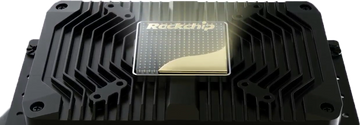

Built on a quad-core Arm Cortex-A55 architecture and 22nm process, the Rockchip RK3568J System-on-Chip (SoC) delivers low-power, efficient performance for fanless, space-constrained environments.

Specification

Processor: Rockchip RK3568J Quad-Core Cortex-A55, up to 2.0 GHz

GPU: Mali-G52 2EE

NPU: 512 MAC

Memory: 4GB LPDDR4 RAM at 2133 MHz

Flexible Storage Options

The BCO-500-ROK Series offers onboard storage designed for reliability and ease of integration in industrial environments.

64GB eMMC Storage
1x MicroSD Slot

Rich IIoT Centric Connectivity

The BCO-500-ROK Series features comprehensive I/O connectivity on-board within its form factor. The I/O provides seamless integration, compatibility, and performance with various IoT devices and sensors.

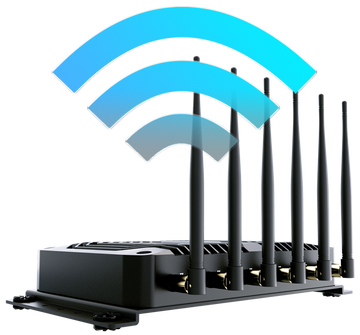

Wireless & Cellular Connectivity with M.2

Enable real-time data transfer and redundant connectivity to maintain uptime. The BCO-500-ROK Series provides M.2 expansion slots integration for wireless and cellular connectivity.

M.2 B Key (3042) – Supports 4G/LTE
M.2 E Key (2230) – Supports Wi-Fi and Bluetooth Connectivity

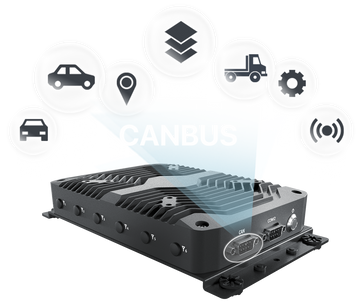

CAN Bus for In-Vehicle Communication

The BCO-500-ROK Series features an integrated CAN Bus port, enabling direct communication with in-vehicle systems and industrial controllers without the need for a central host computer.

Edge-Optimized OS Support

Android 13, Debian 11, Ubuntu 22.04 are optimized for the Rockchip platform, enabling the BCO-500-ROK Series to deliver a streamlined development process and dependable deployment for diverse edge applications.

Built Rugged. Built Ready.

Rugged reliability and durability are critical for 24/7 operations in harsh industrial environments and conditions. The BCO-500-ROK Series is purpose-built with industrial-grade components and a fanless design to withstand tough deployment challenges.

Fanless & Ruggedized Design
Extreme Operating Temperature: -40°C–70°C
MIL-STD-810H Shock & Vibration
Wide Power Input: 12-24VDC
