IPC22101-J6400K-4G-128G – Pane PC chống cháy nổ P-CAP

10.1” TFT LCD / Capacitive touch screen / No extension button
DC9~36V Input
Resolution 1280×800
Intel®Celeron® J6412 / 4G RAM / 128G mSATA
2xLAN / 4xUSB / 1xHDMI

The Panelmate 10.1″ Explosion-Proof Industrial Panel PC is engineered for hazardous environments, combining ATEX-certified safety with rugged performance. Featuring an IP65-rated aluminium-magnesium alloy housing, capacitive touchscreen, and wide-range DC power input, it delivers reliable operation.

ATEX-Certified Explosion-Proof Design

Complies with II 3G Ex ec IIC T4 Gc / II 3D Ex tc IIIC T135°C Dc standards (EN 60079).
IP65-rated front & rear panels for dust/water resistance.

Integrated USB HUB Function

Strong Anti-interference

Wide voltage input range (12-36V DC) with ±10% tolerance for unstable power grids.
Durable, IP65-Rated : Sealed against dust and moisture, ensuring reliable operation in wet or dirty conditions.
Exceeds CE EMC requirements for global deployment.

IP65 Protection

Dustproof, waterproof, and built to withstand vibrations, shocks, and temperature extremes
(-20°C to 60°C).

10-Point Multi-Touch Control

Responsive projected capacitive touchscreen supports fast, accurate inputs with gloves or bare hands—ideal for high-traffic automation workflows.

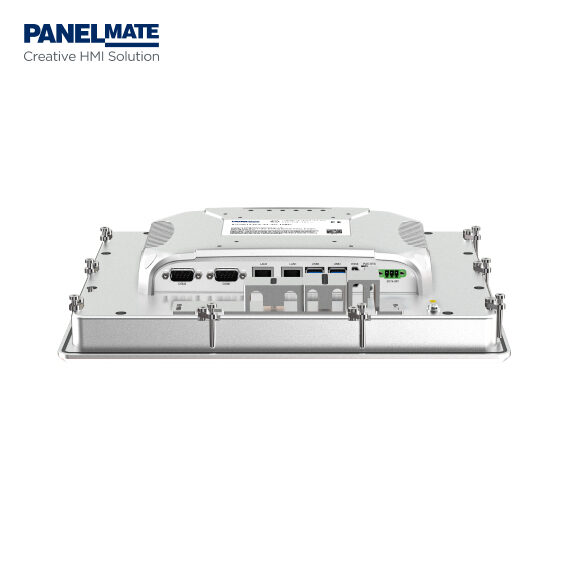

Versatile Connectivity for Industrial Demands

Flexible Installation for Any Environment

Built-In, VESA, and VESA Desktop Mounting Solutions

Tailored Solutions for Every Industry

Designed to meet the rigorous demands of diverse sectors, combines rugged durability, precision touch control, and seamless integration to revolutionize automation across industries

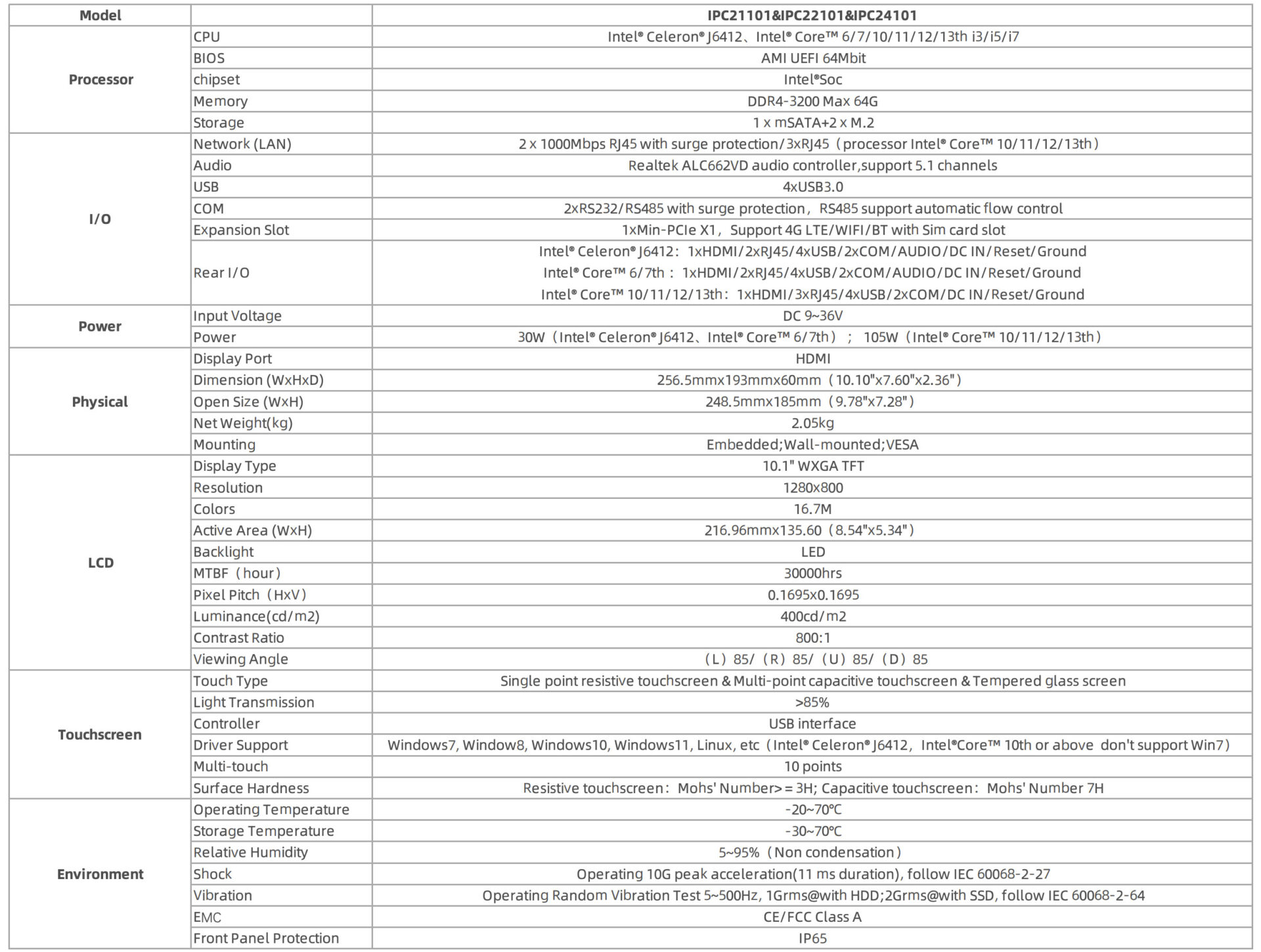

Hãng sản xuất	PANELMATE
CPU	Intel® Celeron® J6412、Intel® Core™ 6/7/10/11/12/13th i3/i5/i7
Size	10.1"
OS	Windows7, Window8, Windows10, Windows11, Linux, etc（Intel® Celeron® J6412，Intel®Core™ 10th or above don't support Win7）
Operating temperature	-20~70℃
