Flexible and cost-effective, this is an ideal industrial solution where high-throughput and high-reliability are fundamental. Especially with NEMA TS-2 Certification, this series is the perfect choice for Smart City and Traffic Control applications.
Unprecedented throughput and power:

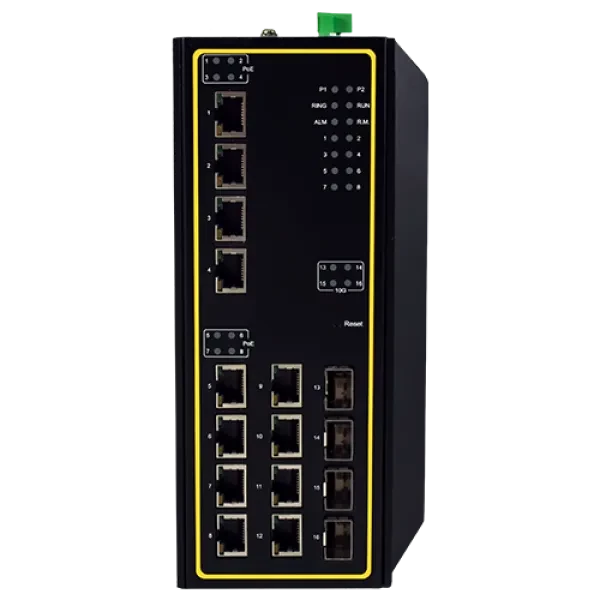

ATOP’s EHG7612/16/20 Series offers 24 versions of up to 20 Gigabit ports, with different port configurations in copper, PoE or fiber, all of which include 4 x 1/10 Gigabit Ethernet SFP uplinks. Specifically designed for bringing power through Ethernet cables virtually anywhere, it supports a maximum of 8 PoE/PoE+ ports (802.3af/at) to produce up to 240W Power over Ethernet output.
Rugged and reliable:
This switch series is EN61000-6-2, EN61000-6-4, IEC/EN/UL62368-1:2014 and FCC certified, able to withstand the harshest environments and the most demanding EMC environment for almost any application. NEMA TS-2 certification further ensures that it is the perfect choice for smart cities and traffic control. Its fanless design and EMC Level 3 protection guarantee reliable operations between -40 and +70°C, and zero packet loss even with all ports running full power. High-performance network redundancy functions provide self-recovery in less than 20ms on full load, enabling a reliable network through almost any redundant ring topology such as ITU-T G.8032 ERPS Ring, IEEE802.1D-2004 RSTP, STP, MSTP, MRP (Manager/ Client), iA-Ring, and iA-Chain.
Secure and smart:
To prevent network intrusions, it is necessary to have a good accessing control mechanism that can identify, authenticate and authorize users. EHG7612/16/20 supports user account, password policy, and authentication interface management functions that comply with IEC62443 standards. The multifunctional web dashboard also offers further intelligent features such as Quality of service (QoS) per port or per VLAN, VLAN, IGMP and port mirroring. Layer-3 routing support BGPv4, IPv4 static routing, RIP v1/v2 and OSPFv2.
| Switch Properties | |
|---|---|
| Priority Queues | 8 |
| VLAN Table | 4,096 |
| MAC-Based VLAN | 512 |
| VLAN ID Range | VID 1 to 4,094 |
| Trunk Group | 4 |
| Static IGMP Groups | 128 |
| Dynamic IGMP Groups | 256 |
| MAC Table Size | 16k |
| Packet Buffer Size | 1.5 MB |
| Jumbo Frame | 9216 Byte |
| Ethernet | ||
|---|---|---|
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3ae For 10 Gigabit Ethernet Fiber IEEE 802.3x for Flow Control, back pressure flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP IEEE 802.3az for Energy Efficient Ethernet |
|
| Protocols | IPv4, IPv6, IGMPv1/v2/v3, IGMP Snooping, GARP, GMRP, GVRP, SNMPv1/v2c/ v3, SNMP Inform, ICMP, Telnet, SSH, DHCP Server/Relay/Client, DHCP Option 66/67/82, BootP, RARP, TFTP, SMTP, SMTP (Gmail), RMON, HTTP, HTTPS, Syslog, MRP (Manager/ Client), LLDP, 802.1x, EAP,RADIUS, TACACS+, Mirror port, QoS, ACL, BGPv4, DHCP Snooping, ARP Spoof Prevention, Dynamic ARP Inspection, MLD, UDLD, IP Source Guard, sFlow | |
| Layer-3 Protocols | Routing: IPv4 Unicast static routing, RIP v1/v2, OSPFv2, Multicast: IGMPv1/v2/v3, DVMRP, PIM-DM, PIM-SM, PIM-SSM Routing Redundancy: VRRP (Virtual Router Redundancy Protocol) | |
| Redundancy | ITU-T G.8032 ERPS Ring, STP, RSTP, MSTP, Compatible Ring/Chain, U-Ring | |
| Time Synchronization | Network Synchronization | NTP Server/Client, SNTP |
| Precision Network Synchronization |
IEEE1588v1 OC/BC (Software) IEEE1588v2 E2E TC (Hardware) – ns acc. IEEE1588v2 OC/BC (Software) |
|
| Automation Profiles | Modbus/TCP device status registers provided | |
| SNMP MIB | MIB II, IF-MIB, SNMPv2 MIB, BRIDGE-MIB, RMON MIB Group 1,2,3,9, RFC RFC 1157, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2571, RFC 2742, RFC 2819, RFC 2863, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2674 | |
| Power | |
|---|---|
| Input Voltage | 9-57 VDC for Non-PoE models 45-57 VDC for 802.3af mode 51-57 VDC for 802.3at mode |
| Input Current (System) | Max. 2.2A @ 9 VDC (without PoE) Max. 3.3 A @ 45 VDC (Support up to 8 ports at 15.4 W per PoE port) Max. 5.2 A @ 51 VDC (Support up to 8 ports at 30 W per PoE port) |
| Power Consumption (System) | Max. 19.8 W @ 9 VDC (without PoE) Max. 148.5 W @ 45 VDC (Support up to 8 ports at 15.4 W per PoE port) Max. 265.2 W @ 51 VDC (Support up to 8 ports at 30 W per PoE port) |
| Connector | 5-Pin 5.08mm Lockable Terminal Block |
| Reverse Polarity Protection | Yes |
| Interfaces | |
|---|---|
| RJ45 Ports | Up to 16 10/100/1000BASE-T(X) auto negotiation speed |
| Fiber Optics Ports | Up to 16 100/1000BASE-X SFP slot plus 4 1000BASE-X or 4 10G SFP slots |
| LED Indicators | PWR1, PWR2, Alarm, Run, Ring, Ring Master, RJ-45 Link/Speed, SFP Link, PoE |
| Console | RS232 (RJ45 connector) |
| Relay Output | 2 relay outputs with current carrying capacity of 1A @ 24 VDC |
| DIP Switches | Ring Control and Profinet Setting |
| Button | Reset Button |
| Physical Characteristics | |
|---|---|
| Housing | IP30 SPCC Metal housing, ruggedized Heat-sink |
| Dimension (W x H x D) | 95 x 200 x 160 mm |
| Weight | 2,500 g |
| Installation | DIN-Rail, Wall mount (optional kit) |
| Environmental Limits | Value |
|---|---|
| Operating Temperature | -20°C~70°C (-4°F~158°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Ambient Relative Humidity | 5% to 95% (Non-condensing test @55°C) |
