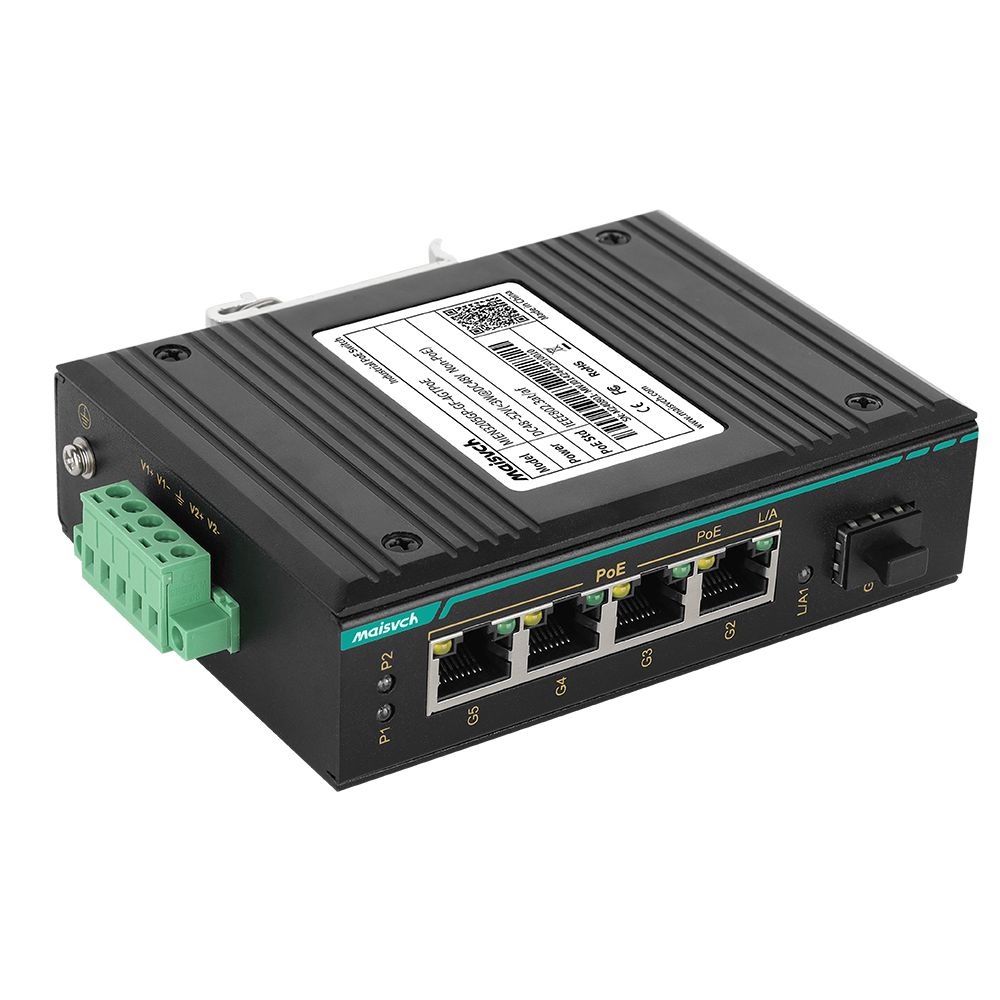

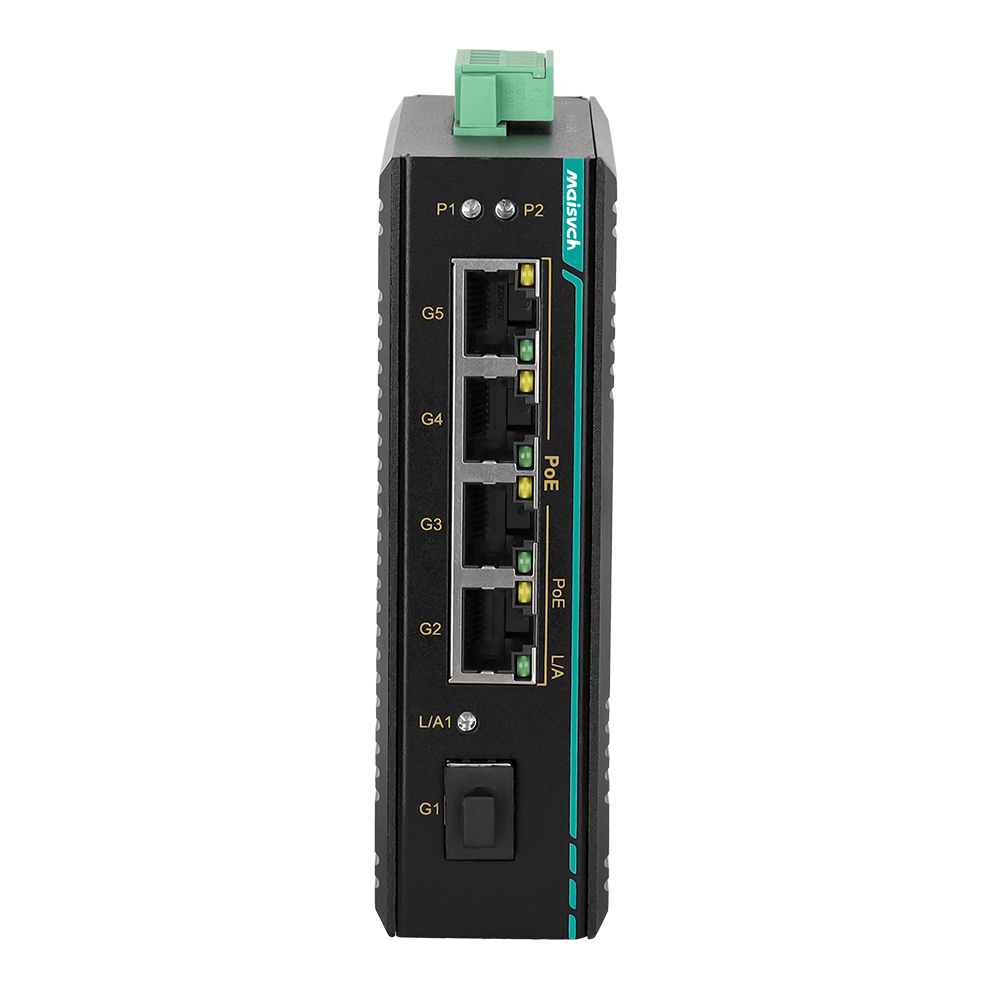

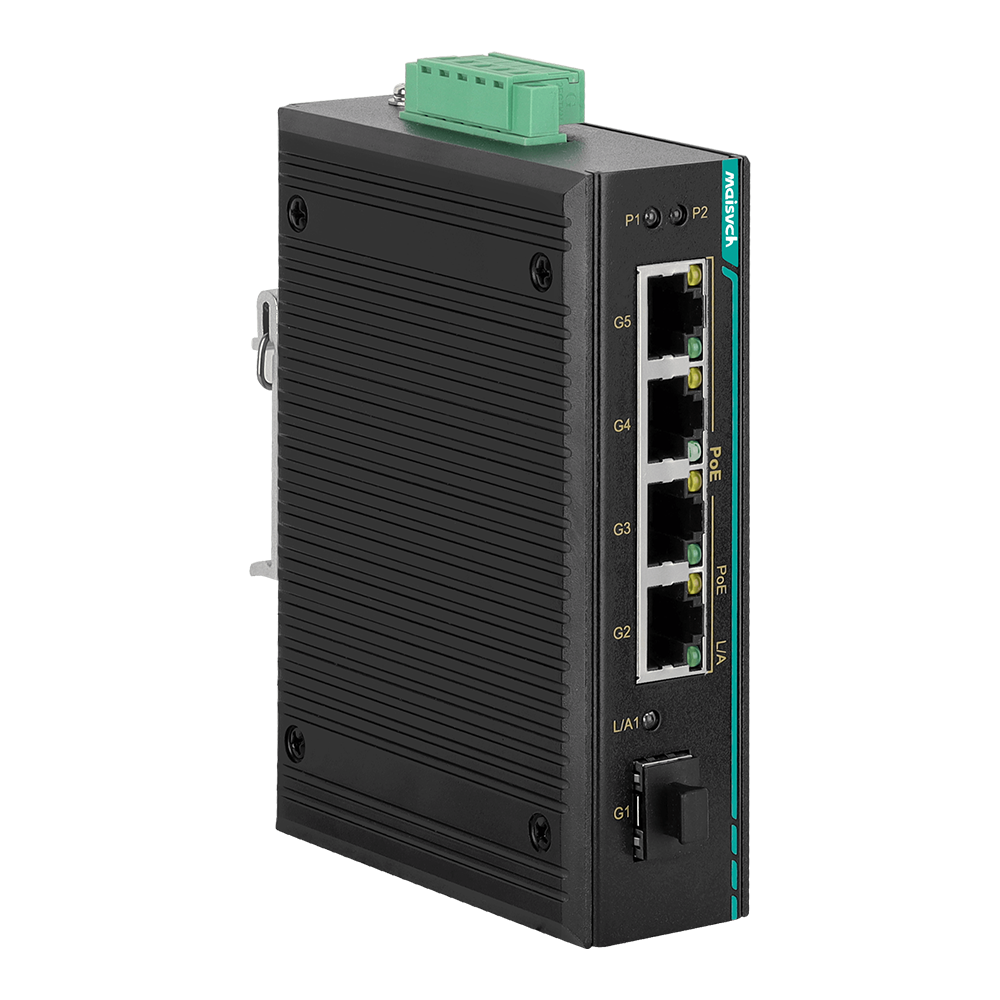

MIEN3205GP-GF-4GTPoE layer 2 Gigabit PoE industrial Ethernet switch supports 1 Gigabit SFP port and 4 Gigabit PoE copper ports. It is applicable and supplies 48V power to power-receiving devices that comply with the IEEE802.3af/at standard. This product features with industrial grade components, standard din-rail type installation, high strength durable metal shell, fanless efficient heat dissipation, -40℃ ~ + 75℃ wide temperature, and high standard industrial protection design, which can adapt to various harsh working environments. It can be widely used in fields such as comprehensive energy, smart cities, rail transit, intelligent transportation, smart factories, and industrial automation.
| Switch capability | |
| Backplane Bandwidth | 14G |
| Buffer Size | 2Mbit |
| Mac Address Table | 2K |
| Interface | |
| Gigabit Fiber Port | 1x1000Base-X Gigabit SFP port |
| Gigabit PoE Copper Port | 4×10/100/1000Base-T(X) auto-sensing RJ45 PoE ports, full/half duplex, auto MDI/MDI-X
PoE/PoE+ complies with IEEE802.3af/at standard, with maximum single port POE output 30W |
| Status LED | Power LED, port LED,PoE LED |
| Power | |
| Power Input | DC48~52V, dual power redundancy, anti reverse connection |
| Full Load Power | <3W@DC48V(No PoE device) |
| Connection | 5.08mm pitch 5-pin terminal block |
| Physical Characteristics | |
| Dimensions | 118×35×88mm (DIN rail mounting clip excluded) |
| Installations | 35mm standard DIN-rail mounting |
| IP Code | IP40 |
| Weight | About 0.4kg |
| Working Environment | |
| Operating Temperature | -40℃~+75℃ |
| Storage Temperature | -40℃~+85℃ |
| Relative Humidity | 5%~95% (non-condensing) |
| Industry Standard | |
| EMC | IEC 61000-4-2 (ESD): Level 4
IEC 61000-4-5 (Surge): Level 4 *The network ports support 6kV lightning protection IEC 61000-4-4 (EFT): Level 3 |
| Certification | CE, FCC, RoHS |
